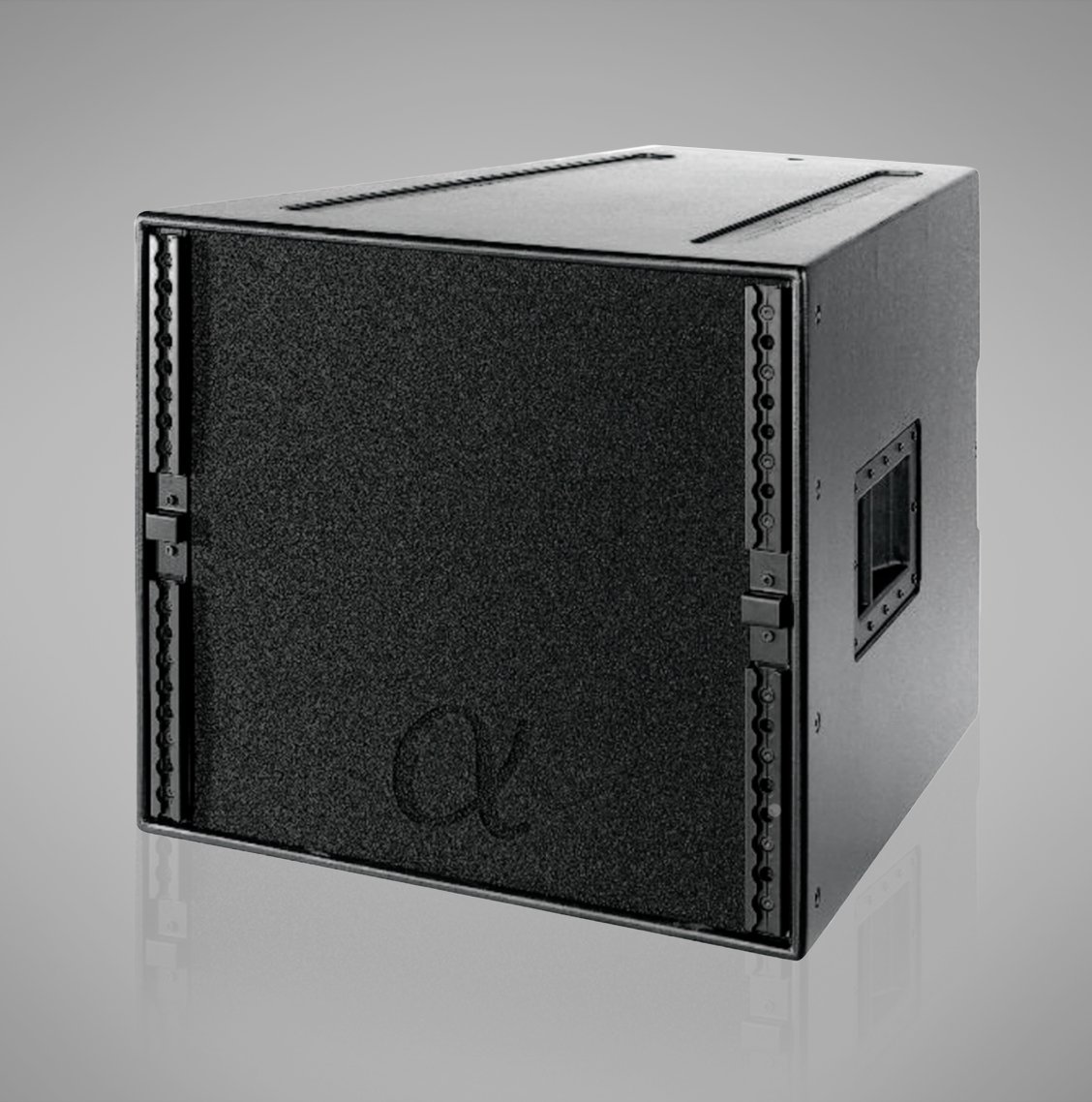

12 x Nexo Alpha M3

The Nexo Alpha M3 is a high-power, mid/high-frequency loudspeaker module, designed for professional touring and installed sound applications. It features two horn-loaded 10-inch mid-range drivers and a horn-loaded 3-inch high-frequency driver.

  • The ALPHA System is a range of advanced technology modular, compact, high power loudspeaker modules tailored for a wide range of touring and installed sound

    Key Technical Specifications

    • Driver Configuration: Uses two horn-loaded 10-inch MF drivers and one horn-loaded 3-inch HF driver.

    • Frequency Response: 190Hz to 19kHz

    • Nominal Dispersion: 35° Horizontal x 35° Vertical

    • Connectors: 2 x Speakon NL8 or EP6 option

    • Weight (without wheelboard): 57kg (126lbs

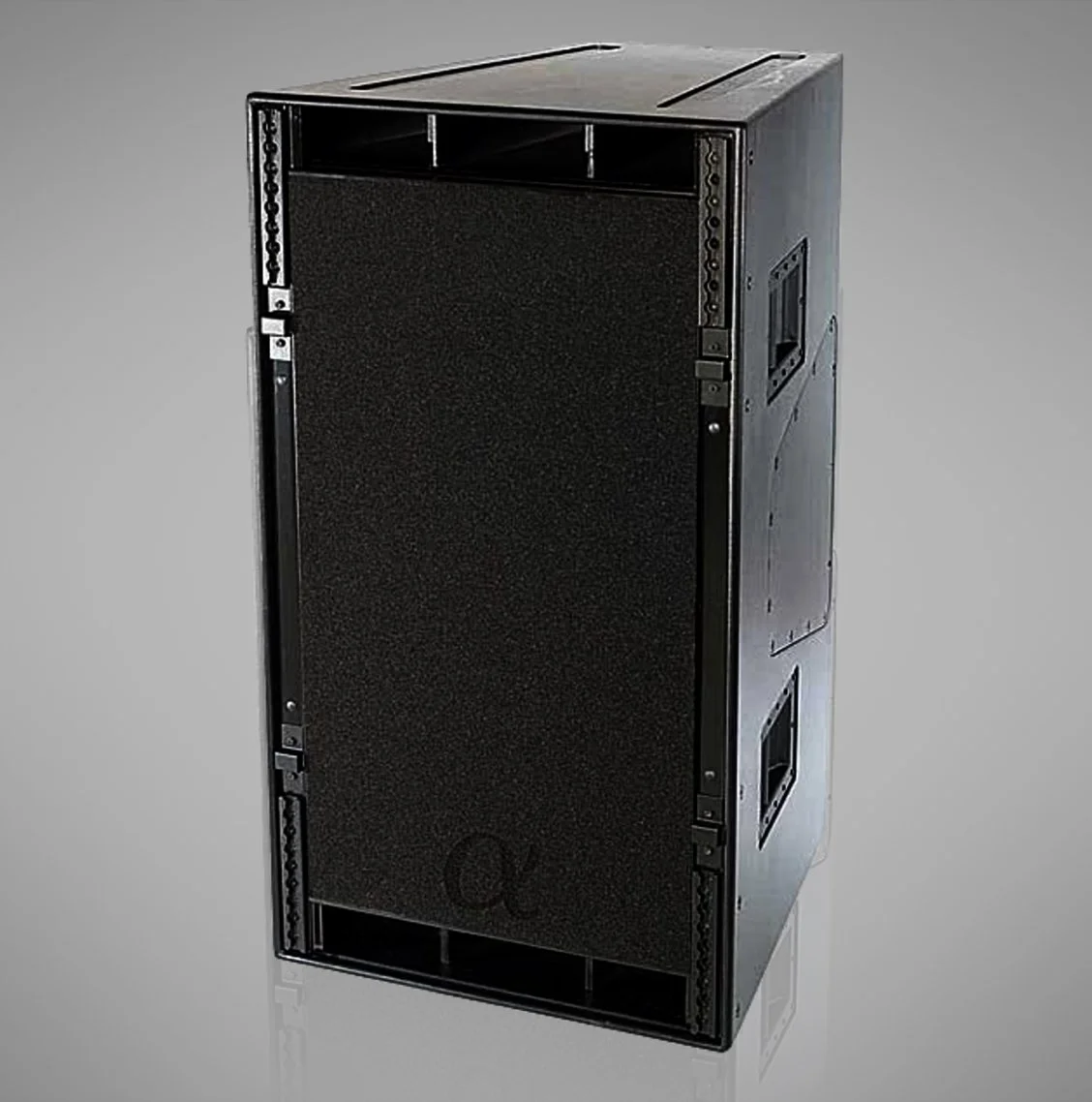

Nexo ALPHA b2

The Nexo Alpha B2 is a dual-15-inch, high-power bass cabinet designed for large-scale touring and installation applications, featuring a folded horn design for high efficiency and low distortion.

  • The B2 is a part of the larger Alpha system, designed to be used with the NX242 Digital TDcontroller to guarantee consistent performance and prevent damage to components.

    Key Technical Specifications

    • Driver Configuration:

    • Frequency Response:

    • Sensitivity (1W at 1m):

    • Power (AES): 400W,

    • Nominal Impedance:

    • Nominal Dispersion:

    • Connectors: 2 x

    • Weight (without wheelboard):

16 X Nexo Alpha E b1-18

The AlphaE B1-18 is an advanced high power Bass module that can be stacked or flown together in arrays with Alpha M3, M8 and S2 and AlphaE- M cabinets. The AlphaE B1-18 uses one NEXO specified high power 18” LF driver on an innovative internal flare component manufactured of rigid honeycomb composites.'

  • This high efficiency design delivers extremely low distortion, coherent bass output from 40Hz to 230Hz. The AlphaE B1-18 is fully capable of operating without the S2 SubBass in applications where extreme LF performance is not required.

    Key Technical Specifications

    • Drivers: 1x 18” (46cm) 6Ω long excursion driver. Folded horn, composite curve

    • Frequency Response: 40Hz – 230Hz ±3dB

    • Usable Bandwidth (–6 dB): 38Hz – 600Hz

    • Sensitivity: 107dB SPL Nominal

    • Nominal Impedance: 6Ω (4.7 min)

    • Nominal peak: 142dB Peak

2 x Nexo Alpha M8

The NEXO ALPHA M8 is a medium-Q Mid/HI module with a frequency response of 190Hz – 19kHz ±3dB, 108dB nominal sensitivity, and a peak SPL of 143dB. It features two 10” MF drivers and one 3” HF driver.

  • The ALPHA System is a range of advanced technology modular, compact, high power loudspeaker modules tailored for a wide range of touring and installed sound.

    Key Technical Specifications

    • Frequency respons: 190 Hz-19 khz ±3 dB

    • Sensitivity (1W @ 1m): 108 dB SPL Nomina

    • Nominal Peak SPL (at 1m) : 143 dB Peak

    • Weight: 57kg (154lbs) without wheelboard

    • Nominal Dispersion: 75° x 45°

    • Driver Configuration: Horn loaded 2 x 10” MF and 1 x 3” HF.

12 x Nexo ALPHA b1-15

F221 provides bass power and dynamics for large areas, typically requiring far fewer cabinets and amplifiers than an equivalent direct radiating bass array, resulting in significant reductions in power consumption

  • The Alpha B1-15 is an advanced high power Bass module that can be stacked or flown together in arrays with Alpha. M3, M8 and S2 cabinets.

    Key Technical Specifications

    • Drivers: 1 x 15” (38cm) 6Ω driver. Folded horn, composite curve

    • Frequency Response: Wideband: 42Hz – 190Hz ±3dB Xover: 80Hz – 190Hz ±3dB

    • Usable Bandwidth (–6 dB): 39Hz – 600Hz

    • Sensitivity: 106dB SPL Nominal

    • Nominal Impedance: 6Ω (5.2 min)

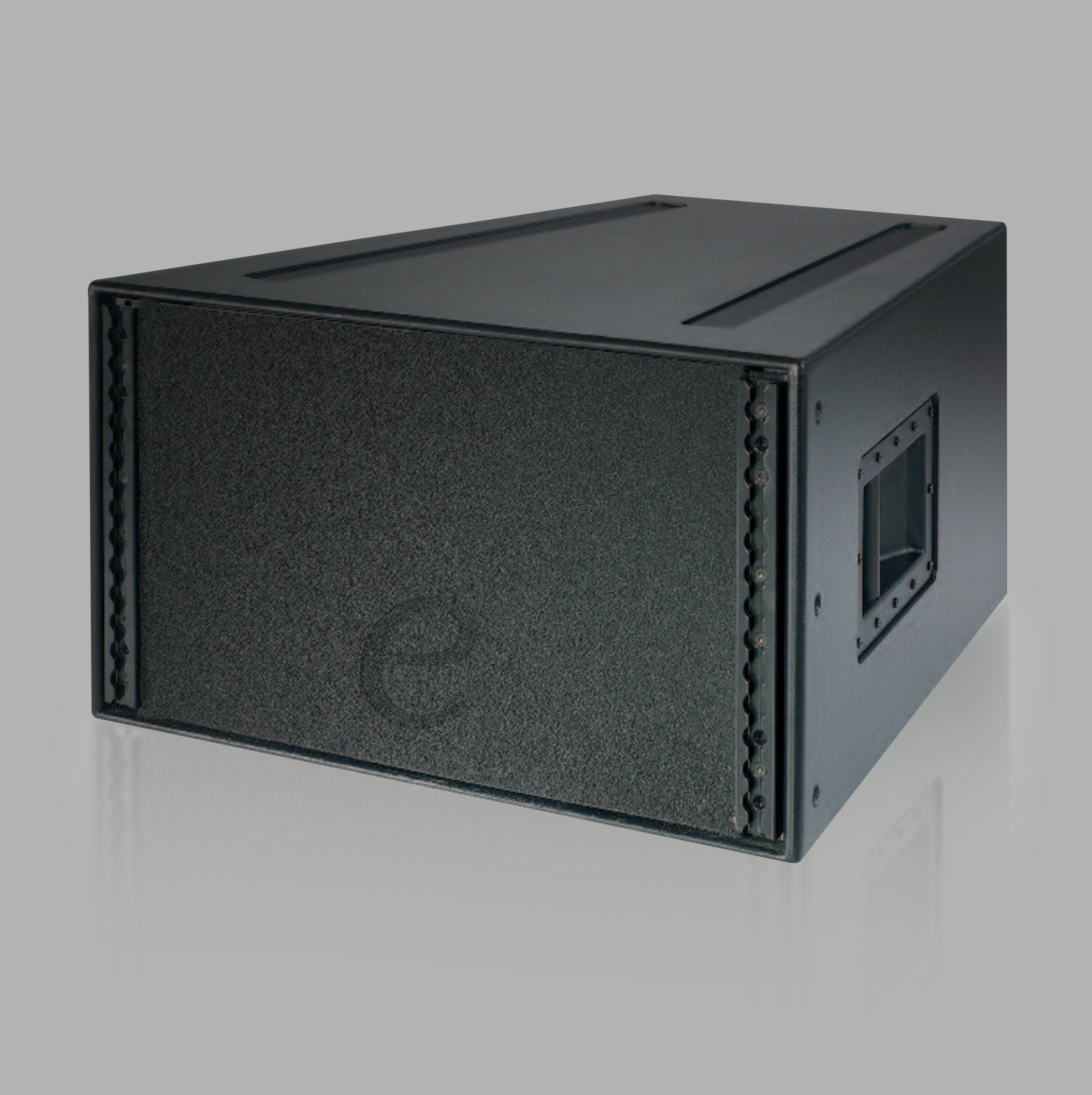

16 x Nexo ALPHA E E-M

The AlphaE-M is a high power Mid/Hi module using an exponential horn loaded 10” MF driver and a constant directivity horn loaded 2” HF driver giving 75° x 30° dispersion. the AlphaE-M delivers outstanding performance as a compact, arrayable medium scale system.

  • the AlphaE-M has a frequency response of 220Hz-19kHz. Together with a B1- 18 Bass, the AlphaE-M delivers outstanding performance as a compact, arrayable medium scale system or a flexible near or side-fill.

    Key Technical Specifications

    • Drivers: 1x 10” (25 cm) 8Ω 3” voice coil driver + Dual Ring Phase Plug, Composite Horns HF: 1x 3” titanium diaphragm ceramic driver + Coaxial Mount Waveguide

    • Frequency Response: 220Hz – 19kHz ±3dB

    • Usable Range (–6 dB): 180Hz – 20kHz ± 6dB

    • Sensitivity: 107dB SPL Nominal

    • Nominal Peak: 140dB Peak

    • Nominal Impedance: 8Ω (7.5 min)
